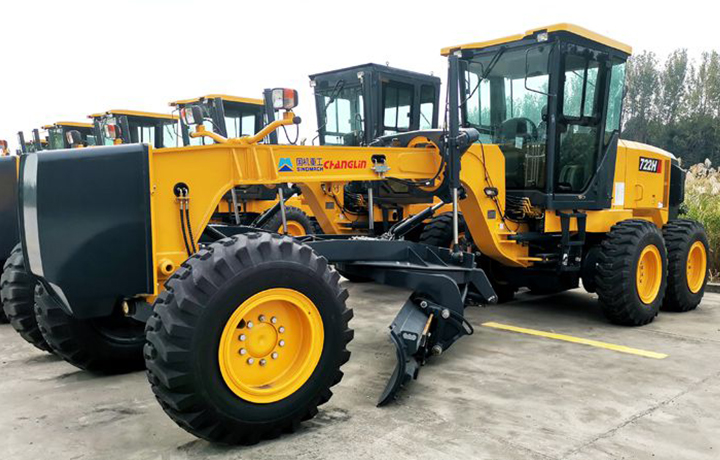

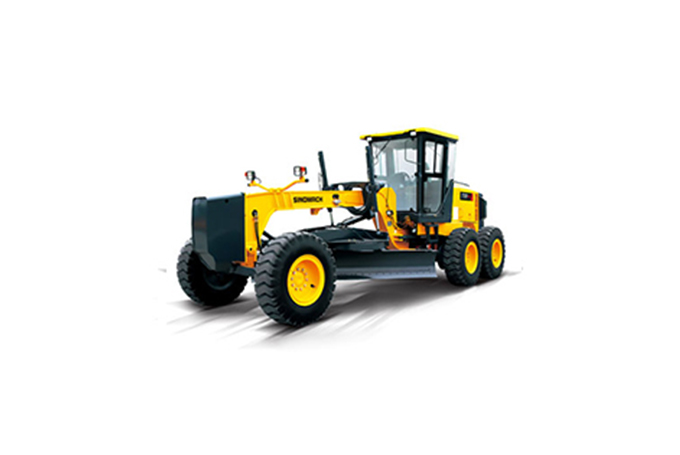

Our 722H motor grader adopts ShangChai engine with model SC11CB220G2B1.
The adopted hydraulic system can achieve efficient control over every working part.
The 6 forward and 3 reverse power-shift transmission features sing-handle and electro-hydraulic control, and ensures simple and convenient operation.
It is available with the hydraulic lock and auto lock/unlock NO-SPIN differential, providing stability and powerful traction.
Designed with perfect axel load allocation, the motor grader is applicable to hard surface cutting with excellent stability.
When combined with box-typed frame, the transmission system allows the vehicle to complete heavy-duty work.
The road grader is equipped with flexible blade suspension system and articulated frame, making it enjoy a wide working range.

Features

Unbeatable Services

Testing and commissioning will be carried out before delivery

The delivery cycle conventional products is 30 days

Under warranty is One year after they are purchased or 2000 working hours.

Provide corresponding theoretical and practical training solution

Parameter

722H Motor Grader Parameter

Basic specification
Engine model	ShangChai SC11CB220G2B1
Rated power	162KW@2200rpm
Dimension(L×W×H)	9250×2600×3420（mm）
Operating weight(Standard)	16100KG
Performance specification
Travelling speed,forward	6.7/10.2/15.2/22.5/31.6/45.1
Travelling speed,reverse	6.7/15.1/31.3
Tractive force(f=0.75)	82.8KN
Operating specification
Max. steering angle of front wheels	49°
Max. lean angle of front wheels	17°
Max. oscillation angle of front axle	16°
Max. oscillation angle of balance box	13°
Frame articulation angle	26°
Min. turning radius using articulation	7.4m
Blade
Maximum lift above ground	450mm
Maximum grading depth	535mm
Maximum blade position angle	90°
Blade cutting angle	29°~77°
Circle reversing rotation	360°
Moldboard width × height	4320×580mm
