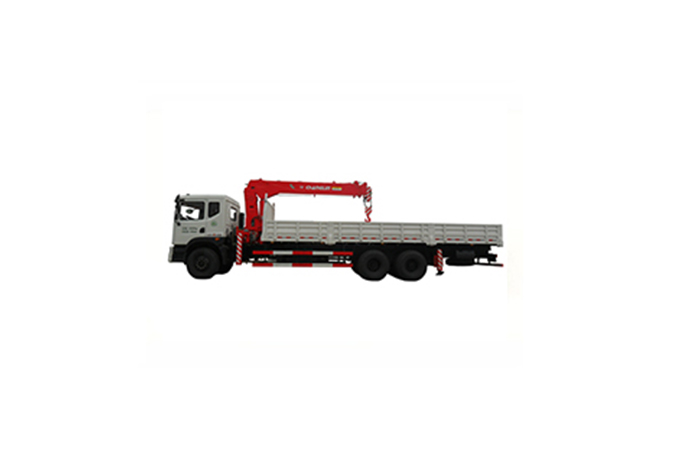

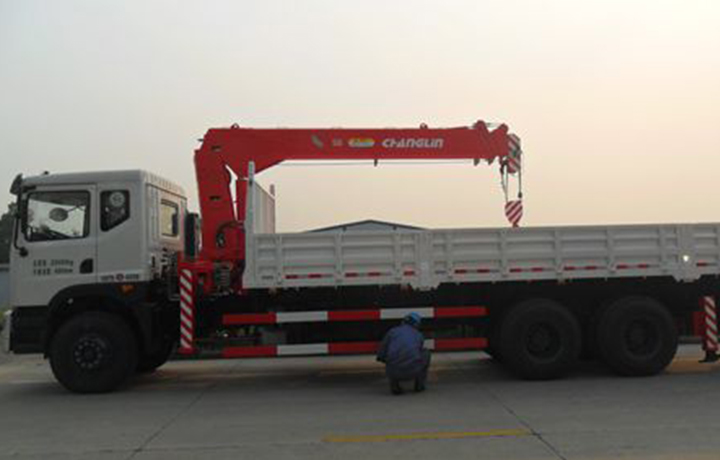

Order | Item | Unit | Parameter | ||
1 | Maximum load moment | kN·m | 200 | ||
2 | Maximum lifting load | kg | 8000 | ||
3 | Maximum working height | mm | 13300 | ||
4 | Boom length (fully retracted) | mm | 4600 | ||
5 | Maximum lifting height (from the ground) | mm | About 16600 | ||
6 | Lifting ratio | 6/4 | |||
7 | Maximum elevation angle of boom | (°) | 75 | ||
8 | Minimum elevation angle of boom | (°) | 0 | ||
9 | Lateral span of the front outrigger | mm | 2114~5560 | ||
10 | Lateral span of the rear outrigger | mm | 2200 | ||
11 | Maximum lifting speed | Main hook (single rope) | Lifting | m/min | 87 |
Lowering | 87 | ||||
12 | Rotation speed | r/min | ≤2.5 | ||
13 | Rotation angle | ° | 360° full rotation | ||
14 | Crane weight | kg | 3168 (including rear outrigger) | ||
15 | Fuel pump | ------------- | Gear pump | ||
16 | Fuel tank capacity | L | 150 | ||
17 | Working pressure of hydraulic system | MPa | 23 | ||
18 | Flow of hydraulic system | L/min | 60 |
Working radius (m) | 4.6m | 7.6m | 10.55m | 13.6m |
2.5 | *8000 | *5700 | 5200 | |
3.0 | *6000 | 5000 | 4300 | |
3.5 | 4500 | 4000 | 3850 | 3400 |
4.0 | 3900 | 3500 | 3400 | 3100 |
4.5 | (4.3) 3400 | 3100 | 3100 | 2900 |
5.0 | 2850 | 2750 | 2600 | |
5.5 | 2600 | 2550 | 2400 | |
6.0 | 2300 | 2350 | 2200 | |
7.0 | 2000 | 2000 | 1850 | |
8.0 | (7.3) 1800 | 1750 | 1625 | |
9.0 | 1550 | 1450 | ||
10.0 | (10.25) 1100 | 1300 | ||
11.0 | 1200 | |||
12.0 | 1000 | |||
13.0 | (13.3) 700 | |||
Lifting ratio | The lifting ratio is 6 for the items marked with * and is 4 for the other items. |
