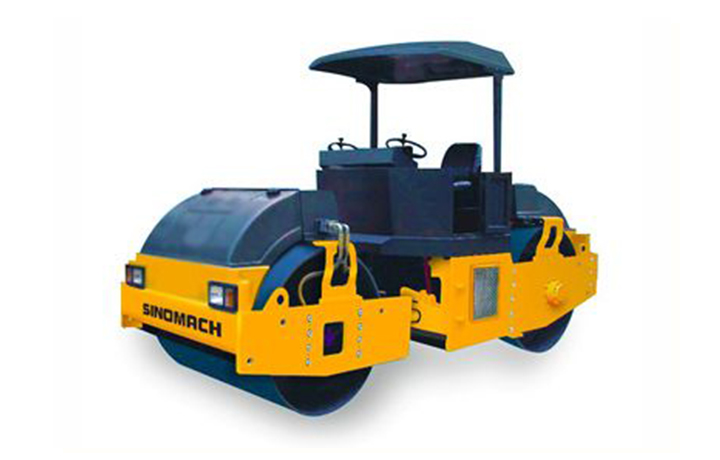

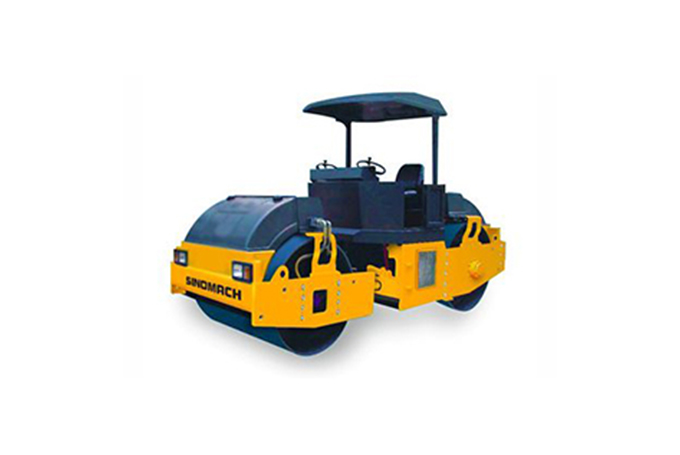

| Model | GYD10 |
| Length×Width×Height(mm) | 4880×1980×2800 |
| Operating weight (Kg) | 10000 |
| Drum width (mm) | 1700 |
| Static linear pressure （N/cm） | 259/317 |
| Vibration frequency (Hz） | 42 |
| Centrifugal force（KN） | 100/85 |
| Forward | 2.4/4.8/8.4 |
| Reverse | 2.4/4.8/8.4 |
| Diesel engine | Cummins 4BT3.9-C100 |
| Rated output(KW) | 75 |
