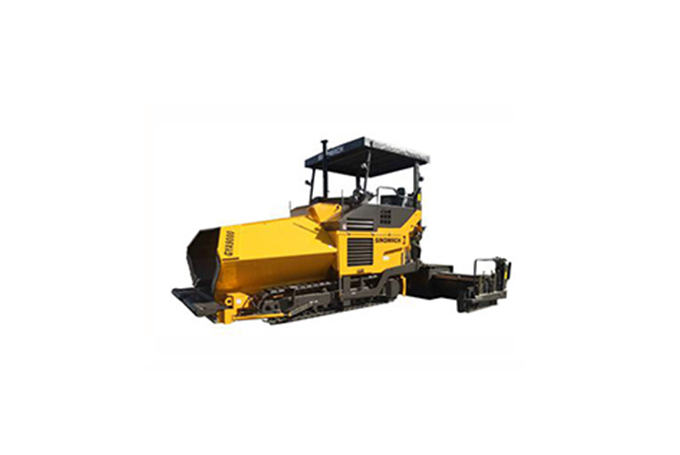

GYA9000 Asphalt Paver
GYA9000 Asphalt Paver

GYA9000 Asphalt Paver

Large pavers are widely used in asphalt, stabilized soil construction operations such as highways, national roads, provincial roads, and urban roads.
Cummins EFI engine, strong power, high reliability; good low temperature start-up performance, suitable for all kinds of complex working conditions, mountain and plateau construction operations.
Rated output (kW): 194
Hopper capacity (ton): 16
Max. paving width (mm): 9000
Product Details
Features
Parameter
Message
Customer Reviews
Engine Parts
Introduction

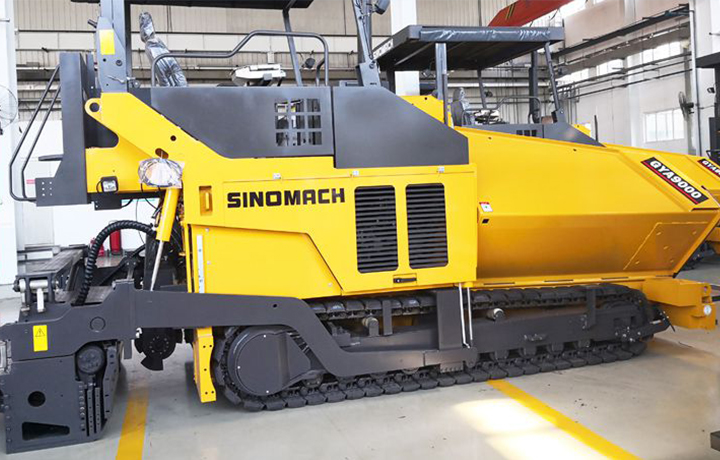

Large pavers are widely used in asphalt, stabilized soil construction operations such as highways, national roads, provincial roads, and urban roads.
Cummins EFI engine, strong power, high reliability; good low temperature start-up performance, suitable for all kinds of complex working conditions, mountain and plateau construction operations.
All imported hydraulic pumps, motors, valves, joints, reducers, radiators, water tanks, etc.
Configure double vibrating, eccentric vibrating mechanical extension screed or hydraulic telescopic screed. The telescopic plate is equipped with screed tensioning system and pressurizing system to prevent screed deformation and meet the requirements of stable soil thickness paving operation.
Features
Unbeatable Services
Testing and commissioning will be carried out before delivery
The delivery cycle conventional products is 30 days
Under warranty is One year after they are purchased or 2000 working hours.
Provide corresponding theoretical and practical training solution
Parameter
GYA9000 Asphalt Paver Parameter
Model GYA9000
Length×Width×Height (mm): 6720×2540×3887
Total weight (kg): 26500
Engine Cummins
Rated output (kw) 194
Basic paving width (mm) 2500
Max. paving width (mm) 9000
Max. paving thickness (mm) 450
Travelling type Crawler
Travelling speed (km/h) 0-3.6
Paving speed (m/min) 0-20
Hoper capacity (t) 16


Besides the GYA9000 asphalt paver, SINOMACH have many other kinds of heavy construction and engineering equipment for sale.
