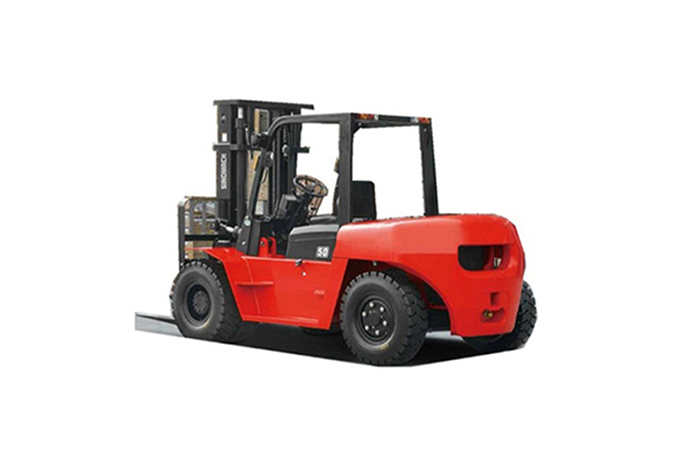

CPCD80 Diesel Forklift Truck

Engine Parts

Introduction

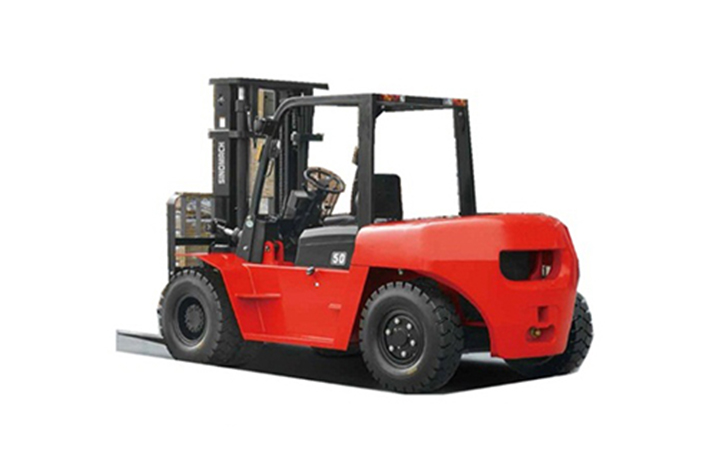

The CPCD80 series forklift comes with the latest appearance design. It has a great line, dynamic and stylish appearance.
Thanks to a large sized injection molded covering part, the forklift truck looks more elegant and user friendly.
Long wheelbase design ensures higher longitudinal stability and higher lifting capacity. Load on the real axle is reduced, extending the service life of steering wheel.
Due to the reduction of machine size, our diesel forklift has smaller turning radius and narrows the passage for right angle stacking, thus considerably improving warehouse use ratio and providing suitability for use in containers.
Japanese OKAMURA, NISSAN and Chinese HC transmissions are optional for the lift truck. They come with best in class structure and reliable performance. The OKAMURA type transmission features floating structure, ensuring a completely flexible connection between engine and forklift frame, thus minimizing machine vibration.

Features

Unbeatable Services

Testing and commissioning will be carried out before delivery

The delivery cycle conventional products is 30 days

Under warranty is One year after they are purchased or 2000 working hours.

Provide corresponding theoretical and practical training solution

Parameter

CPCD80 Diesel Forklift Truck Parameter

General	Product name			Forklift truck
	Basic model			-	CPCD80
	Type			-	RG16	RG17	RG25	RW14	RW28
	Power type			-	Diesel	Diesel	Diesel	Diesel	Diesel
	Rated load			kg	8000	8000	8000	8000	8000
	Load center distance			mm	600	600	600	600	600
Characteristics & Dimensions of Forklift Truck	Lifting height			mm	3000	3000	3000	3000	3000
	Free lift height			mm	200	200	200	200	200
	Fork size	L×W×T		mm	1500×160×75	1500×160×75	1500×160×75	1500×160×75	1500×160×75
	Fork spacing (Outside)	Min./Max.		mm	440×1950	440×1950	440×1950	440×1950	440×1950
	Mast tilt range	F/R		degree	6/12	6/12	6/12	6/12	6/12
	Fork overhang (Wheel center to fork surface)			mm	705	705	705	705	705
	Overall dimensions	Length (To surface of fork)		mm	3896	3896	3896	3896	3896
		Overall width		mm	2165	2165	2165	2165	2165
		Mast closed height		mm	2850	2850	2850	2850	2850
		Mast extended height		mm	4510	4510	4510	4510	4510
		Overhead guard height		mm	2540(2570*)	2540(2570*)	2540(2570*)	2540(2570*)	2540(2570*)
	Turning radius (Outside)			mm	3690	3690	3690	3690	3690
	Min. width of right angle stacking aisle			mm	3300	3300	3300	3300	3300
	Min. width of right angle stacking aisle (Including load length and clearance)			mm	6095	6095	6095	6095	6095
Performance of Forklift Truck	Speed	Travel speed		km/h	0-26	0-26	0-26	0-26	0-26
	Speed	Lifting speed (Full load)		mm/sec	320	380	380	380	380
	Max. gradeability (Full load)			%	20	20	20	20	20
	Dead weight			kg	11300	11300	11300	11300	11300
Wheel& tires	Tyre	Front		mm	9.00-20-14PR	9.00-20-14PR	9.00-20-14PR	9.00-20-14PR	9.00-20-14PR
	Tyre	Rear		mm	9.00-20-14PR	9.00-20-14PR	9.00-20-14PR	9.00-20-14PR	9.00-20-14PR
	Tread	Front/Rear		mm	1600/1700	1600/1700	1600/1700	1600/1700	1600/1700
	Wheelbase			mm	2500	2500	2500	2500	2500
	Ground clearance			mm	250	250	250	250	250
	Battery	Voltage/Capacity (5HR)		V/Ah	2×12/90	2×12/90	2×12/90	2×12/90	2×12/90
Power & Transmission of Forklift Truck	Engine	Model		-	CY6102BG	YC6B125	LR6M3	6BG1QP	QSB4.5
		Manufacturer		-	CHINA	CHINA	CHINA	ISUZU	CUMMINS
		Rated output/rpm		kW	81/2500	92/2200	92/2200	84.6/2200	82/2200
		Rated torque/rpm		N.m	353/1700	463/1400-1700	450/1400-1600	411/1400-1600	488/1500
		Quantity of cylinder		-	6	6	6	6	4
		Bore×stroke		mm	102×118	108×125	110×125	105×125	107×124
		Emission standard		-	-	-	-	-	Stage IIIA/Tier3
		Displacement		cc	5785	6871	7120	6494	4460
	Transmissions	Fuel tank capacity		L	120	120	120	120	120
		Manufacturer		-	CHINA	CHINA	CHINA	CHINA	CHINA
		Type		-	Power shift	Power shift	Power shift	Power shift	Power shift
		Gear	Forward-reverse	-	2/2	2/2	2/2	2/2	2/2
Others	Operating pressure	For attachment		MPa	19.5	19.5	19.5	19.5	19.5
1. Bespoke lifting height available. 2. This range of material handling equipment can be provided with attachment. 3. Data in the table is for standard model only. For further information, please contact us. 4. All specifications are subject to change without prior notice.

Besides the CPCD80 diesel forklift truck, SINOMACH have many other kinds of heavy construction and engineering equipment for sale.
