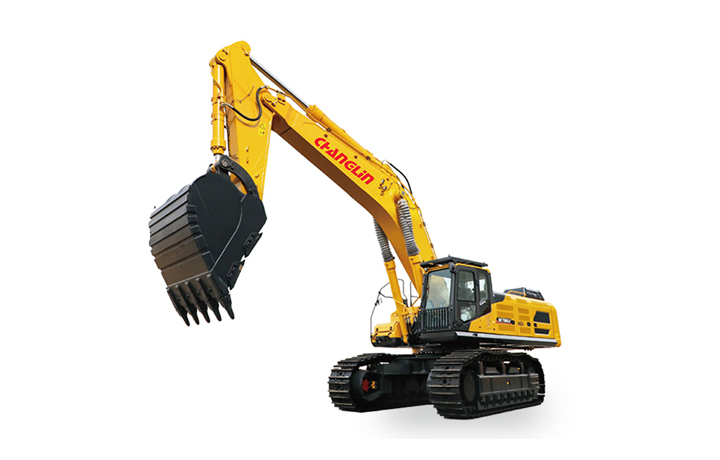

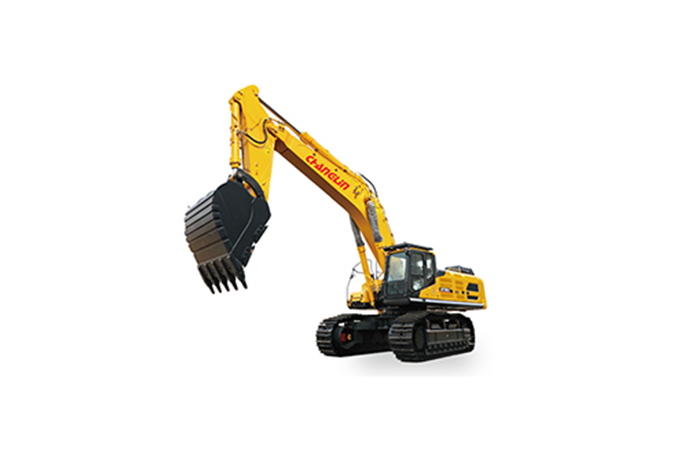

| Dimensions (mm) | |||||
| A | Overall length | 12930 | I | Tread | 4750 |
| B | Ground contact length (transportation) | 8290 | J | Track length | 5960 |
| C | Overall height (to top of the boom) | 4730 | K | Track gauge | 3440/281 0 |
| D | Overall width | 4310/3680 | L | Track width | 4090/346 0 |
| E | Overall height (to top of the cab) | 3705 | M | Shoe width | 650 |
| F | Counterweight ground clearance | 1550 | O | Bonnet height | 3370 |
| G | Ground clearance | 895 | P | Revolving frame width | 3505 |
| H | Tail swing radius | 4145 | Q | Distance from swivel center to tail | 4055 |
